Easy Open Design – Ring-pull opening system for convenient canned food packaging.
Multiple EOE Sizes – Standard can-end series and customized dimensions available.
Food Packaging Ready – Suitable for tomato paste, seafood, fruit, vegetables and canned foods.
Custom Coating Options – Gold, clear, silver and application-specific internal coatings supported.
Complete Export Documents – MTC, COO, relevant test reports and shipping documents available.

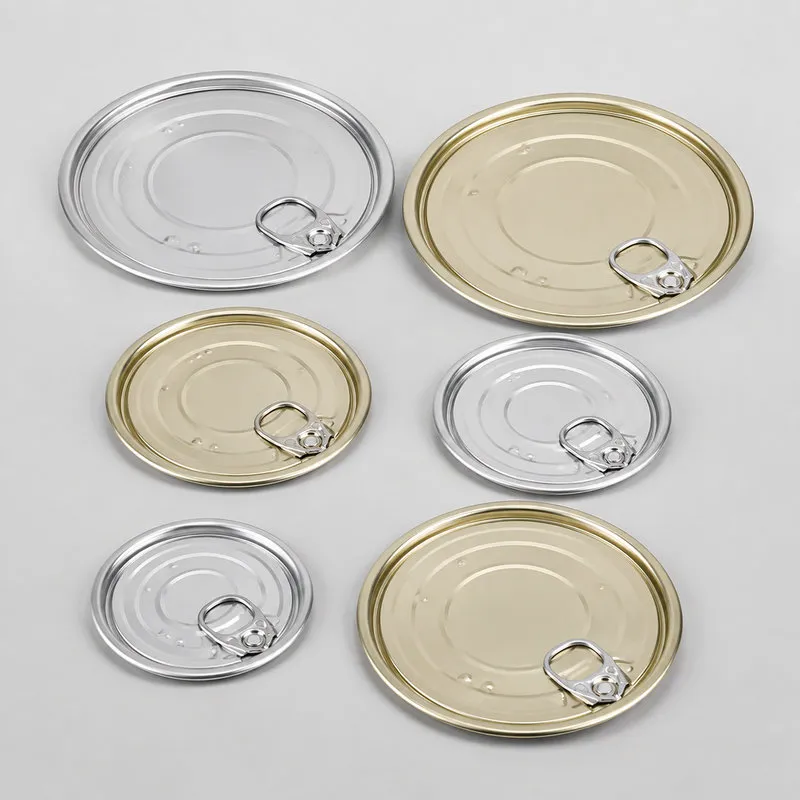

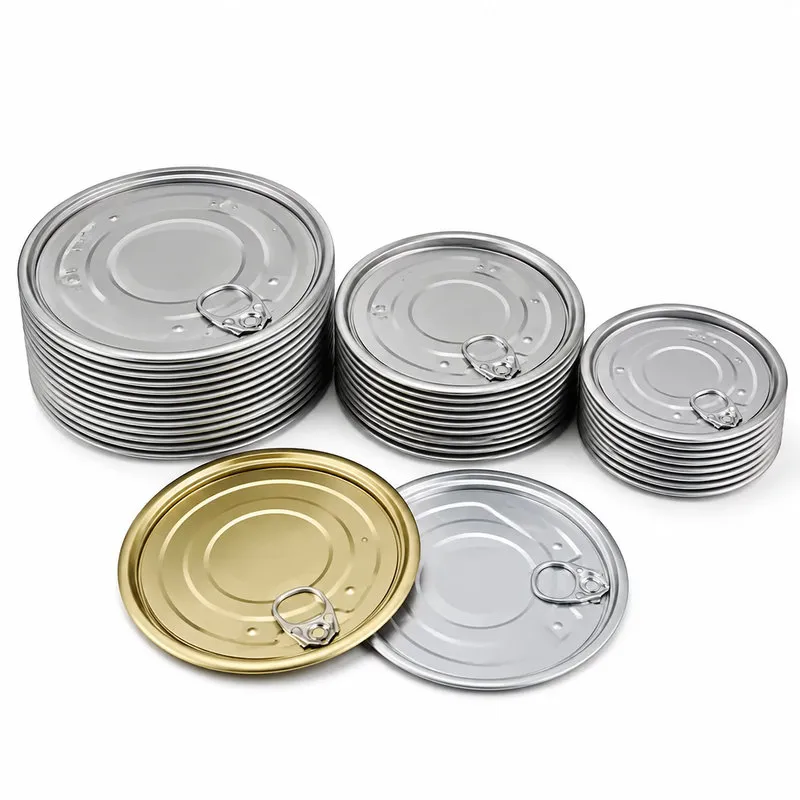

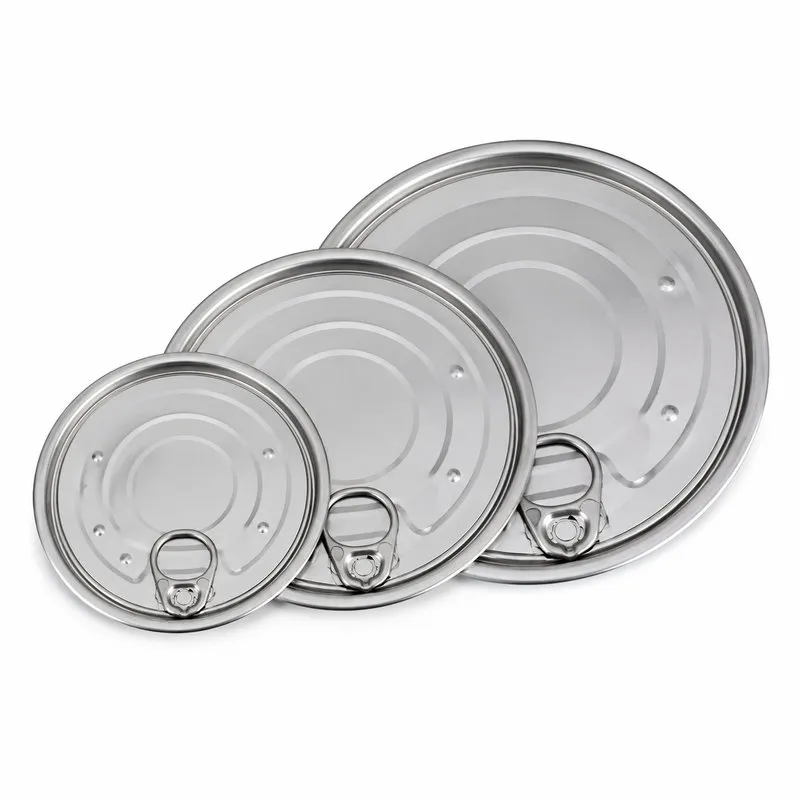

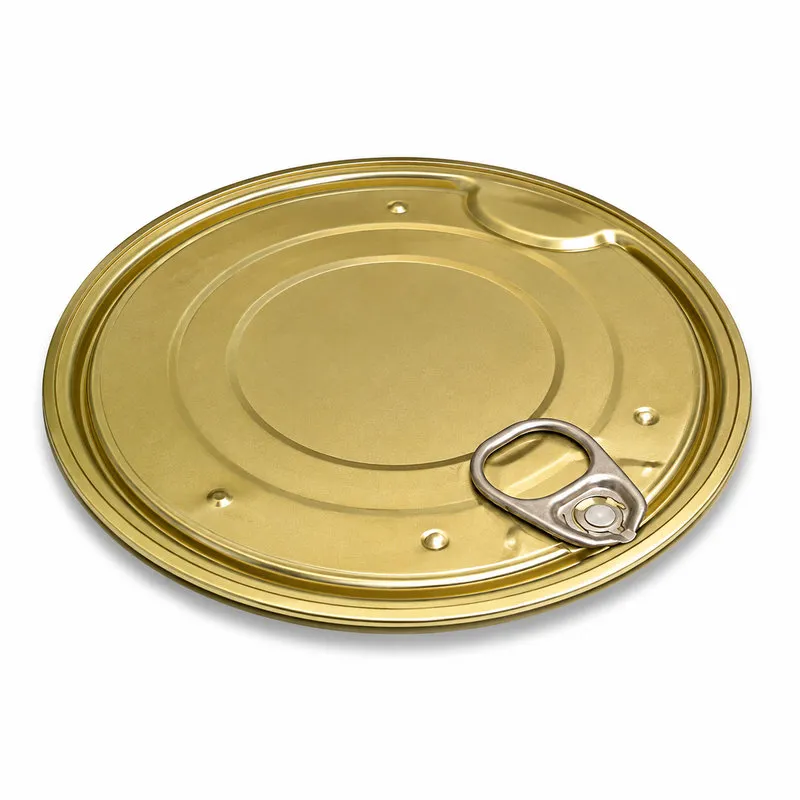

Easy Open End, commonly abbreviated as EOE, is a precision-manufactured metal can end equipped with a controlled score line and pull tab. The structure allows consumers to open canned products manually without using a separate can opener.
Tinplate Easy Open Ends are widely used for tomato paste, tuna, sardines, fruit, vegetables, beans, meat products and other processed foods packed in metal cans.
Henan GDD supplies multiple EOE diameters, end series, tinplate tempers, internal coatings and external finishes. Matching tinplate food cans, conventional bottom ends and printed can-body materials can also be coordinated for complete metal packaging projects.
| Item | Specification |
|---|---|
| Product Name | Easy Open End / EOE / Ring Pull Can End |
| Base Material | Electrolytic Tinplate / ETP / SPTE |
| Opening Type | Full Aperture EOE / Ring Pull Easy Open End / Customized Opening Structure |
| Common End Series | 200, 202, 209, 211, 300, 307, 401, 502, 603 Series or Customized According to Available Tooling |
| Diameter | Customized According to Can Body, End Series and Double-seaming Specification |
| Tinplate Thickness | Customized According to EOE Diameter, Temper and Opening Design |
| Common Temper | T4, T5, DR8, DR9 or Customized |
| Tin Coating | Equal or Differential Tin Coating According to Technical Specification |
| Pull Tab | Ring Pull Tab / Customized Tab Structure |
| Internal Coating | Clear Lacquer, Gold Lacquer or Food-contact Coating According to Filling Product |
| External Finish | Natural Silver, Gold, Clear, White, Colored or Customized |
| Sealing Compound | Applied According to End Profile and Double-seaming Requirements |
| Seaming | Compatible with Double Seaming According to Matching Can-body Specification |
| FDA-related Test Support | Relevant Third-party Test Report Against Applicable FDA 21 CFR 175.300 Requirements Available According to Product and Report Scope |
| Inspection | Dimension Check, Score Inspection, Tab Inspection, Coating Inspection, Surface Inspection and Third-party Inspection Support |
| Applications | Tomato Paste, Sardines, Tuna, Fruits, Vegetables, Beans, Meat Products and Other Canned Foods |
| Available Documents | MTC, Relevant Test Reports, Certificate of Origin, Export License Where Required, Commercial Invoice, Packing List, Bill of Lading and Customs Documents |
| Packing | Protective Sleeves, Plastic Bags, Cartons, Pallets and Seaworthy Export Packing |
| Trade Terms | EXW, FOB, CFR, CIF |
Final EOE diameter, material thickness, temper, score geometry, pull-tab design, coating and sealing specifications must be matched with the customer's can body, filling product and seaming equipment before mass production.
An Easy Open End consists of a formed can-end shell, removable opening panel, precision score line and pull tab.
When the tab is lifted, mechanical force is transferred to the scored panel. The controlled residual metal underneath the score allows the panel to open along a predetermined path.
EOE design therefore requires a balance between opening convenience and mechanical integrity. The end must remain stable during manufacturing, transportation, filling, thermal processing and storage before being intentionally opened by the consumer.
Full Aperture Easy Open Ends are designed so that most or substantially all of the central panel can be removed after pulling the ring tab.
This structure is widely used for solid and semi-solid canned foods because it provides broad access to the packaged product.
Common applications include tuna, sardines, meat products, fruit, vegetables, beans and tomato-based foods.
The shell provides the main structural form and includes the curl used to connect the EOE with the can-body flange.
The precision score defines the controlled opening path. Score depth and residual material are determined according to the end design and tinplate properties.

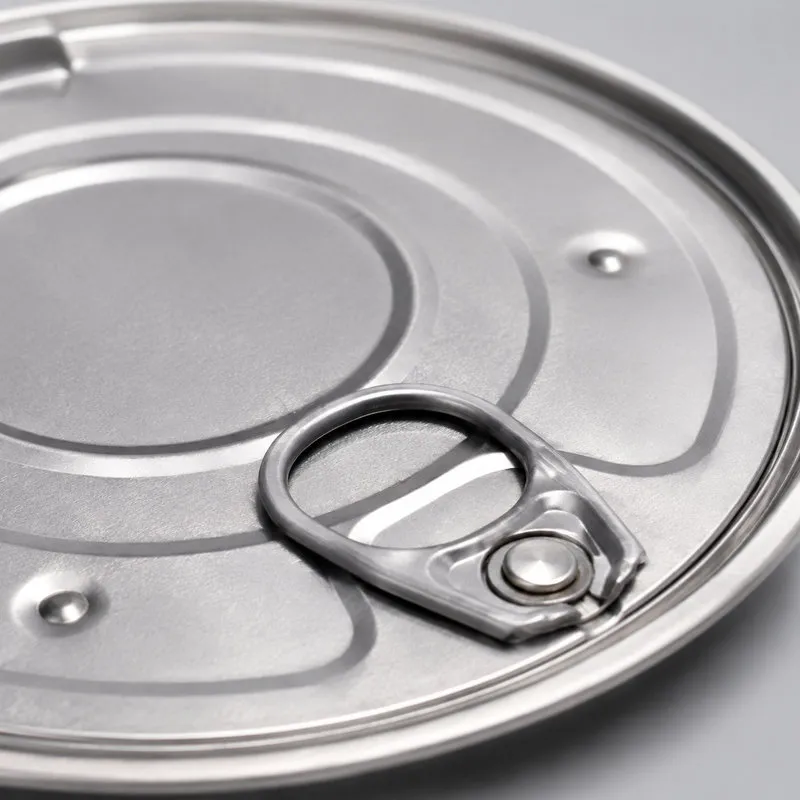

The pull tab provides leverage and transfers opening force to the scored panel.
Sealing compound is applied in the end channel to support the double-seam sealing system after the EOE is attached to the can body.
Tomato paste cans frequently use full-aperture EOE lids because the removable opening panel provides convenient access to thick food products.
Internal coating should be selected according to tomato acidity, filling formulation, thermal-processing conditions and required storage period.
Henan GDD can also coordinate printed tinplate can bodies and compatible bottom ends for complete tomato paste can projects.
Seafood packaging is one of the major applications of ring-pull Easy Open Ends.
The appropriate coating system should consider whether the seafood is packed in oil, brine, tomato sauce or another filling medium.
Matching EOE size and seam profile should be confirmed against the customer's can dimensions and closing equipment.
Easy Open Ends can be used for fruits, vegetables, sweet corn, beans, mushrooms and other canned foods.
Full-aperture opening provides convenient consumer access, while different internal lacquer systems can be selected according to acidity, salt content and processing conditions.
Easy Open Ends are available in multiple standard series and diameters, but the commercial end number alone should not be treated as sufficient technical information for production.
Customers should provide the existing can diameter, end designation, technical drawing or physical sample whenever possible.
This allows the end profile, curl geometry and double-seaming compatibility to be reviewed before mass production.
The EOE curl and can-body flange are mechanically interlocked during double seaming. Dimensional compatibility between both components is therefore essential.
Can manufacturers should inspect seam parameters according to their approved packaging specifications and production procedures.
For a new can project, sourcing the food can body and corresponding EOE from coordinated specifications can simplify compatibility confirmation.
The score is one of the most technically sensitive areas of an Easy Open End.
Excessive residual thickness can increase opening force, while insufficient residual material can reduce structural reliability before intended opening.
For this reason, score geometry is controlled according to tinplate thickness, temper, EOE diameter, opening structure and manufacturing tooling.
EOE production requires tinplate with controlled mechanical properties, dimensional consistency and forming performance.
T4, T5 and selected double-reduced specifications may be used depending on the size and design of the finished can end.
Material specification should be determined according to actual end design rather than assuming one temper is suitable for every EOE.
A suitable coating can be applied to the food-contact side of the Easy Open End.
Coating selection should consider acidity, sulfur compounds, salt concentration, oil content, sterilization conditions and expected shelf life of the packaged product.
Clear, gold and other appropriate coating systems can be discussed according to the customer's filling product and technical requirements.
Henan GDD can provide relevant third-party testing documentation for applicable tinplate products according to the corresponding material and available report scope.
Test documentation against applicable FDA 21 CFR 175.300 requirements can be provided where the supplied material corresponds with the product covered by the relevant inspection report.
For accurate compliance communication, the documentation should be described as a third-party test or inspection report against the referenced requirements rather than as an FDA-issued certification.
Customers should provide their destination country and specific food-contact documentation requirements before order confirmation.
A typical tomato paste can manufacturer requires a full-aperture EOE matched with a three-piece tinplate can body. During specification review, the main points include can diameter, end profile, internal coating, thermal-processing conditions and double-seaming compatibility.
For this type of project, Henan GDD can coordinate EOE lids together with printed can-body material and conventional bottom ends, reducing the risk of sourcing incompatible components from separate specifications.
For sardine or tuna packaging, buyers commonly require ring-pull opening together with an internal coating suitable for oil, brine or sauce-based filling products.
The customer should provide the filling medium and existing can specification so that the EOE size, surface treatment and matching can-body requirements can be reviewed before production.
Fruit and vegetable can producers commonly prioritize reliable opening performance, consistent dimensions and compatibility with automated high-speed seaming lines.
For repeat orders, maintaining the same approved EOE profile, coating specification and production identification helps improve batch-to-batch consistency.
Customer names, confidential prices and proprietary production data are not published without authorization.
Production begins with suitable tinplate selected according to the required diameter, end structure and mechanical properties.
Precision stamping forms the basic end shell and required panel geometry. Subsequent operations create the controlled score and attach the pull tab.
Internal and external coatings are applied according to specification, while sealing compound is positioned in the end channel for subsequent double seaming.
Finished EOE products undergo dimensional and surface inspection before protective packing.
EOE inspection can include overall diameter, curl geometry, surface appearance, score condition, pull-tab assembly and sealing-compound condition.
Material and coating documents can be reviewed against the approved order specification, while matching with the corresponding can body can be checked where required.
Product photographs, inspection records, packing photographs and loading photographs can be provided according to customer requirements.
Independent third-party inspection can also be arranged according to the purchase contract.
Henan GDD can provide technical, commercial and customs documentation according to destination-country and contract requirements.
Available documents can include MTC, relevant third-party test reports, Certificate of Origin, export license where required, commercial invoice, packing list, bill of lading and customs declaration documents.
Destination-specific certificates, legalization, chamber endorsement and other special documentation requirements should be confirmed before order placement.
Henan GDD supplies Easy Open Ends to food-can manufacturers, seafood processors, tomato paste producers, canned-food factories and metal-packaging distributors.
We support multiple EOE sizes, tinplate specifications, internal coatings, external finishes and customized packaging requirements.
Our supply scope can also include SPTE/ETP Tinplate Sheet, Tinplate Coil, printed tinplate, finished food cans and conventional can ends.
Technical specifications can be reviewed against customer drawings, samples or existing end specifications before mass production.
MTC, relevant test reports, Certificate of Origin, export license where required and complete shipping documentation can be provided according to contract requirements.
Easy Open Ends are precision packaging components and require careful protection against deformation of the curl, pull tab and opening panel.
Finished ends can be arranged in protective sleeves or bags and packed into reinforced cartons before palletizing.
Carton and pallet labels can identify EOE size, coating, production batch, quantity and other required information.
Shipment can be arranged under EXW, FOB, CFR or CIF terms.
An Easy Open End is a metal can lid with a controlled score line and pull tab that allows consumers to open the can without a separate can opener.
EOE lids are widely used for tomato paste, sardines, tuna, fruits, vegetables, beans, meat products and other canned foods.
Multiple standard end series and customized dimensions can be discussed according to available tooling and the customer's matching can-body specification.
Yes. Suitable clear, gold and other coating systems can be discussed according to the packaged food and processing conditions.
Yes. Matching printed food cans, can-body materials and conventional bottom ends can be supplied together with Easy Open Ends.
Relevant third-party test documentation against applicable FDA 21 CFR 175.300 requirements can be provided according to the corresponding product and report scope.
Yes. MTC, Certificate of Origin, relevant test reports, export license where required, commercial invoice, packing list, bill of lading and other agreed documents can be provided.
Please provide the EOE series or diameter, matching can dimensions, filling product, internal coating, external finish, quantity, destination port and required documentation.
Looking for Easy Open Ends for tomato paste, sardines, tuna, fruit, vegetables or other canned food packaging?
Send Henan GDD your EOE size or can diameter, end type, filling product, coating requirement, matching can specification, quantity, destination port and required documents.
If you already use an EOE from another supplier, you can also provide the existing lid sample, drawing or technical specification for comparison and quotation.
