EOE Tinplate Lid – Easy open can end with a convenient ring pull structure.
Food Can Applications – Suitable for fish, meat, vegetables, fruit and pet food cans.
Multiple Opening Designs – Full aperture, partial aperture and customized EOE options.
Custom Size and Finish – Diameter, lacquer, printing, color and tab style customizable.
Export Ready Service – Inspection support, protective packing, FOB, CIF and CFR available.

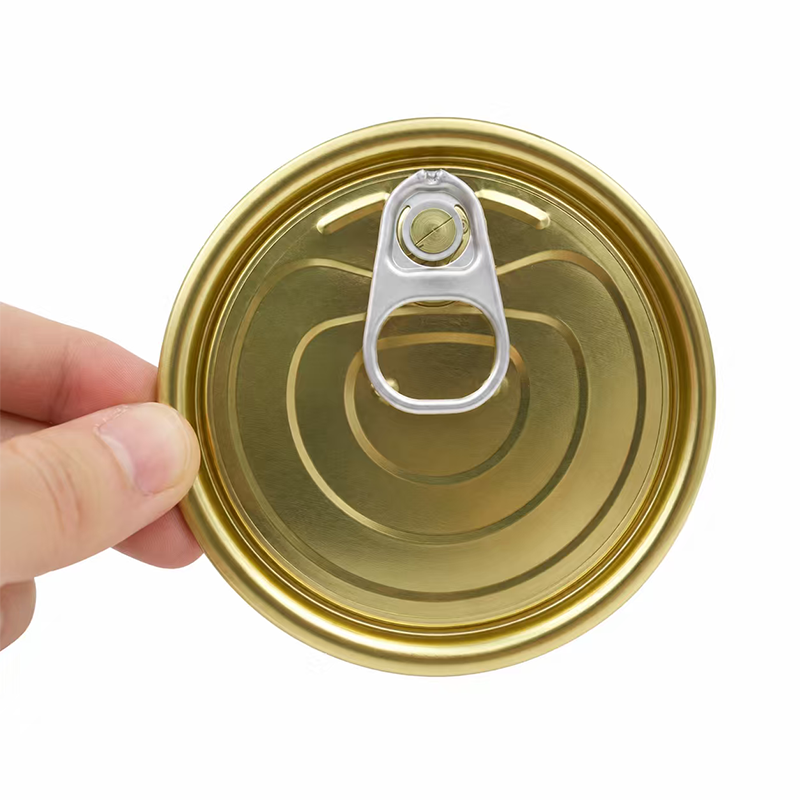

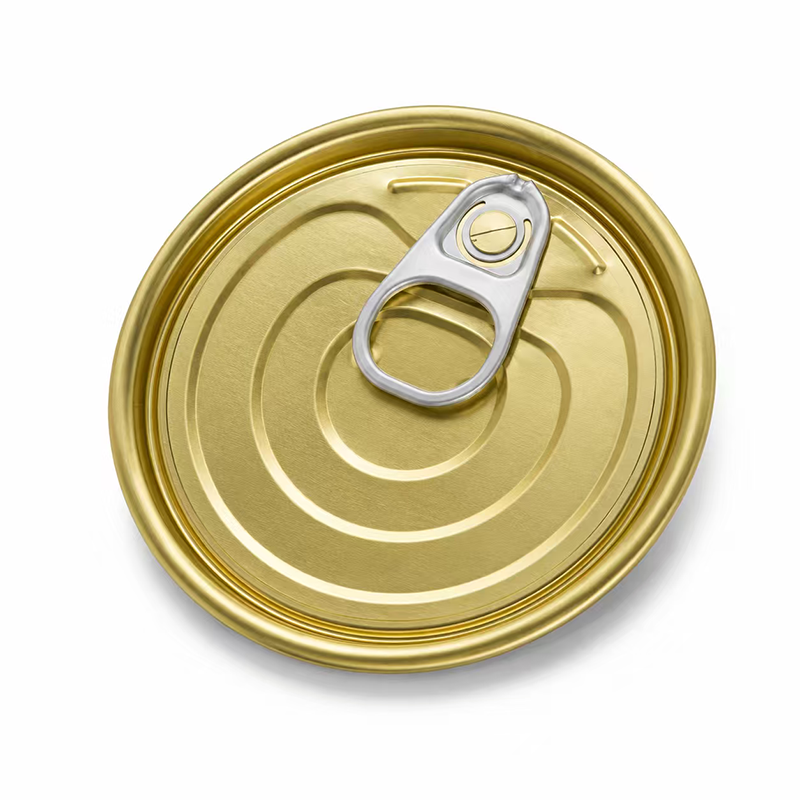

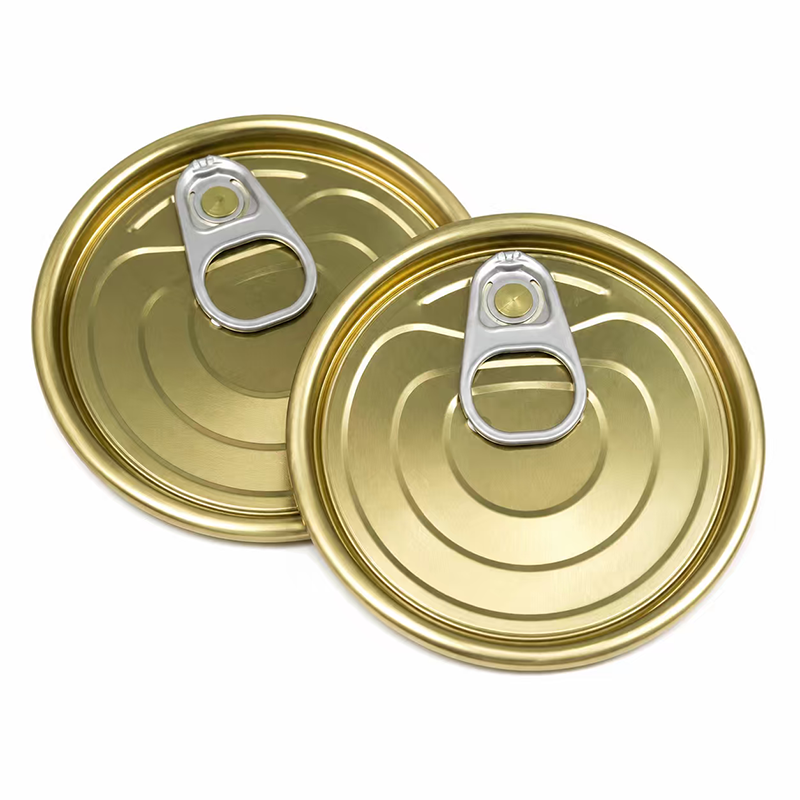

EOE tinplate lid is a metal can closure designed with a scored opening panel and pull tab, allowing consumers to open the can conveniently without using a separate can opener. EOE means Easy Open End, and the product is widely used in modern food can and metal packaging production.
The tinplate base provides strength, forming stability and compatibility with can-making processes. A suitable lacquer system helps protect the metal surface and separate the packaged product from direct contact with the steel substrate.
Henan GDD supplies tinplate easy open ends in multiple diameters, opening styles, tempers, surface colors and printing designs. We support food can manufacturers, pet food factories, seafood processors, vegetable canneries, metal packaging factories and global packaging distributors.
| Item | Specification |
|---|---|
| Product Name | EOE Tinplate Lid / Tinplate Easy Open End / Ring Pull Can Lid |
| Base Material | Electrolytic Tinplate / ETP Tin Coated Steel |
| Opening Type | Full Aperture, Partial Aperture, Ring Pull, Stay-on-tab or Customized |
| Shape | Round or Customized Shape |
| Common Diameter | 52 mm, 65 mm, 73 mm, 83 mm, 99 mm, 126 mm, 153 mm or Customized |
| Tinplate Thickness | 0.18 mm – 0.32 mm or Customized |
| Temper | T3, T4, T5, DR8, DR9 or Customized |
| Tin Coating | According to Can-making and Packaging Requirements |
| Internal Coating | Food-contact Lacquer, Epoxy-type Lacquer or Customized Coating System |
| External Finish | Silver, Gold, White, Plain, Printed or Customized Color |
| Pull Tab Material | Tinplate, Aluminum or Customized Material |
| Sealing Compound | Food-can Sealing Compound According to Application Requirements |
| Processing Service | Lacquering, Printing, Embossing, Logo Printing, Color Matching and Custom Packing |
| Inspection | Dimension Check, Appearance Inspection, Opening Test, Compound Inspection and Third-party Inspection |
| Applications | Fish Cans, Meat Cans, Vegetable Cans, Fruit Cans, Pet Food Cans and Dry Food Cans |
| Packing | Plastic Bag, Carton, Pallet and Standard Export Protective Packing |
| Trade Terms | FOB, CFR, CIF, EXW |
Available dimensions, lacquer systems and opening structures may vary according to the can diameter, filling product, sterilization process and customer production line. Final specifications should be confirmed using drawings or physical samples.
An EOE tinplate lid is an easy open can end made primarily from tinplate. The lid includes a controlled score line and a pull tab. When the tab is lifted and pulled, the scored panel opens along the designed path.
The design provides convenient consumer access while maintaining the sealing and structural performance required during filling, seaming, sterilization, storage and transportation.
Tinplate EOE lids are widely used for processed foods, seafood, meat, vegetables, fruits, tomato products, pet food and other canned products.
A full aperture EOE allows most or all of the central panel to be removed. It provides a wide opening and is commonly used for tuna, sardines, meat, pet food, vegetables and other solid canned products.
A partial aperture EOE opens only part of the central panel. It may be selected for products requiring controlled pouring, limited access or a specific opening design.

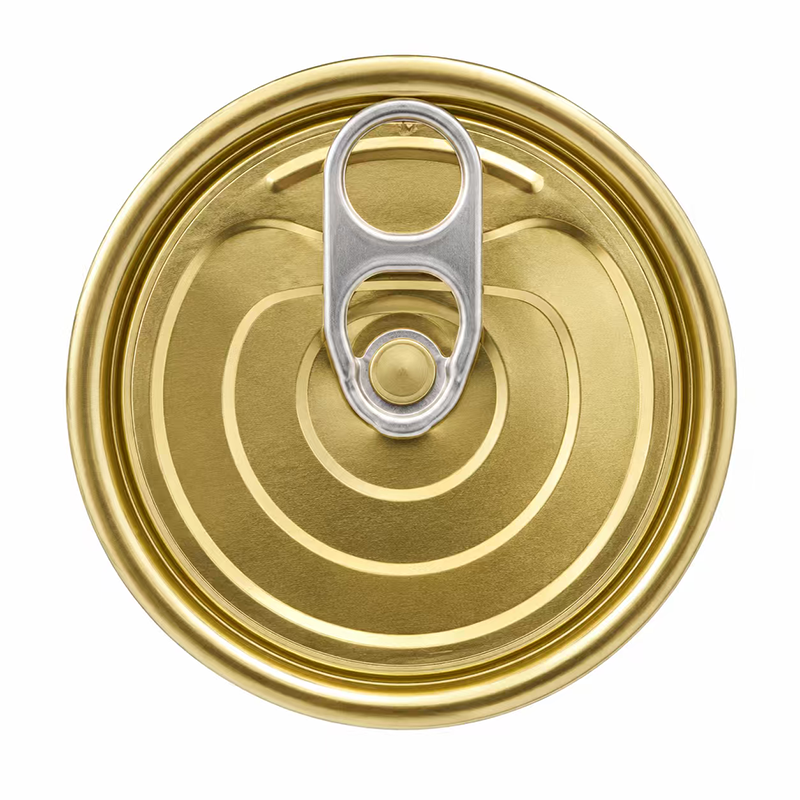

Ring pull lids use a pull ring connected to the scored panel. The tab design can be adjusted according to lid diameter, opening force, appearance and customer requirements.
A stay-on-tab design keeps the pull tab attached to the lid after opening. Availability depends on the lid structure, tooling and packaging application.
Printed easy open ends can include brand logos, product names, opening instructions, promotional graphics or customized colors on the external surface.
EOE tinplate lids are commonly used for canned fish products such as tuna, sardines and mackerel. Full aperture designs make it easier for consumers to access solid food inside the container.
Meat and pet food manufacturers use easy open ends for cans containing luncheon meat, processed meat, wet pet food and related products.
Vegetable and fruit processors use EOE lids for sweet corn, beans, peas, mushrooms, tomato products, fruit pieces and other preserved foods.
Tinplate easy open lids can also be used for nuts, coffee, milk powder, dry food and other metal packaging products when the lid structure and sealing system match the product requirements.
The pull tab design allows consumers to open the can without using a separate can opener, improving packaging convenience.
Correctly manufactured lids provide suitable curl dimensions, compound distribution and structural consistency for double-seaming operations.
EOE lids can be supplied in organized protective packing for automatic or semi-automatic can filling and seaming production lines.
External surfaces can be supplied in silver, gold, white, plain or printed finishes to support product branding and market positioning.
Different diameters and opening styles can be selected for seafood cans, vegetable cans, meat cans, pet food cans and other packaging formats.
Suitable internal and external coatings can help protect the tinplate surface and support compatibility with the packaged product.
Full aperture easy open ends provide a large opening and allow the central panel to be substantially removed. They are preferred for products that need easy access with a spoon, fork or direct removal.
Partial aperture lids create a smaller opening and may be selected for pouring, controlled dispensing or specialized packaging designs.
The correct type depends on product form, can diameter, consumer usage, required opening force and packaging design.
A normal tinplate can lid usually requires a can opener or another opening tool. Its structure is relatively simple and can provide an economical solution for standard canned products.
An EOE lid contains a pull tab and scored opening panel. It provides greater convenience but requires more precise forming, scoring, tab attachment and inspection.
Buyers should select the appropriate lid according to product positioning, packaging cost, consumer preference and can-making equipment.
Tinplate thickness and temper influence lid strength, opening performance, score stability and resistance to deformation during seaming and sterilization.
T3, T4 and T5 tempers may be used according to the lid size and production design. DR8 and DR9 double-reduced tinplate can provide higher strength at a thinner gauge for suitable applications.
Final material selection should be based on lid diameter, opening design, sterilization conditions, filling process and can manufacturer requirements.
The internal lacquer creates a protective layer between the packaged product and the metal surface. The appropriate coating should be selected according to food type, acidity, oil content, salt level and sterilization conditions.
Gold, clear and other application-specific coating systems may be discussed. Customers should provide detailed filling product information so that a suitable lacquer system can be evaluated.
Food-contact compliance requirements differ by market. Buyers should confirm the required regulations, test reports and certification documents before ordering.
Opening performance is affected by score depth, remaining metal thickness, tab position, rivet strength, material temper and lid diameter.
The opening force should be controlled so the lid is convenient to open while maintaining sufficient resistance to accidental opening during filling, processing, transport and storage.
Samples can be tested and approved before mass production when customers have specific opening force, score or tab requirements.
Henan GDD can discuss customized diameter, opening structure, pull tab shape, lacquer system, external color, logo printing, embossing and packing according to customer requirements.
For new projects, customers should provide can diameter, lid drawing, sample, filling product, sterilization method, seaming machine information and annual purchase volume.
Sample confirmation and production line testing are recommended before large-volume orders, especially when introducing a new lid size or coating system.
Henan GDD supplies tinplate materials and metal packaging components to food can manufacturers, lid factories, metal printing companies, seafood processors, pet food companies and packaging distributors.
We support different lid diameters, tinplate tempers, lacquer systems, printed surfaces, customized packaging and international shipping arrangements.
From specification confirmation and sample development to production, inspection, packing and loading, our team provides one-stop export support for EOE tinplate lid orders.
Inspection can include lid diameter, curl dimensions, panel appearance, score condition, tab position, rivet condition, lacquer coverage, sealing compound and packing quantity.
Opening tests, leakage-related checks, visual inspection, dimension inspection and compatibility testing can be arranged according to customer specifications.
Inspection photos, product videos, packing photos, loading photos and third-party inspection support can be provided according to order requirements.

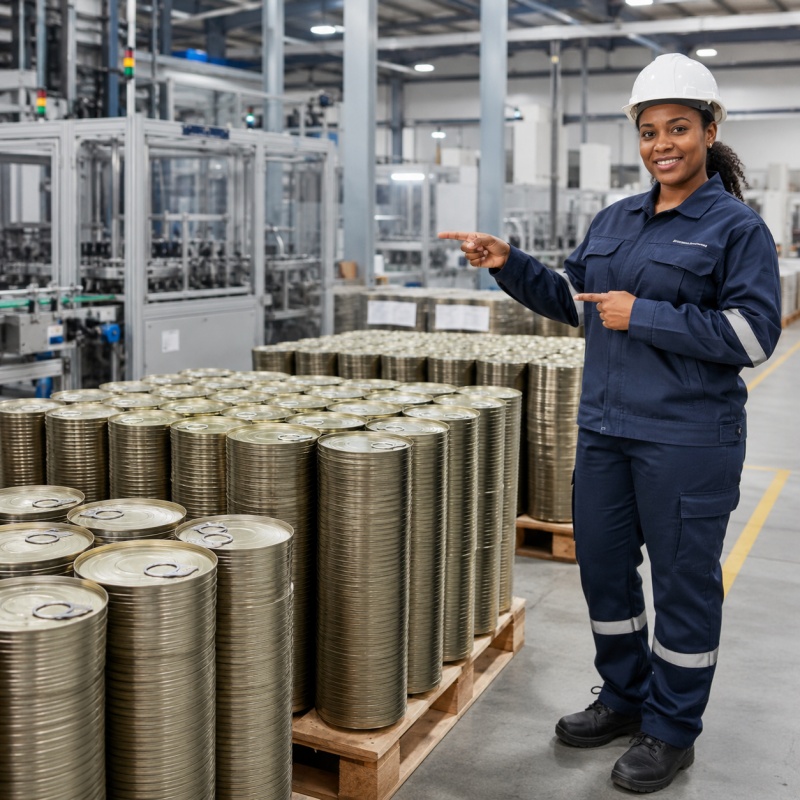

EOE tinplate lids are normally packed in clean plastic bags or sleeves, placed in cartons and secured on export pallets. Protective packing helps reduce dust, moisture, scratches, deformation and contamination during transportation.
Carton quantity, pallet quantity, labels, shipping marks and packing orientation can be customized according to customer warehouse and production line requirements.
Export documents such as commercial invoice, packing list, bill of lading, certificate of origin and agreed inspection documents can be provided according to the trade terms.
EOE means Easy Open End. It is a can lid with a pull tab and scored panel that allows the container to be opened without a separate can opener.
Common applications include canned fish, meat, vegetables, fruits, tomato paste, wet pet food, nuts, coffee and other food packaging.
Common diameters include approximately 52 mm, 65 mm, 73 mm, 83 mm, 99 mm, 126 mm and 153 mm. Customized sizes can be discussed according to drawings or samples.
Yes. Full aperture, partial aperture, ring pull and other customized opening structures can be discussed.
Yes. Logo printing, text, colors, opening instructions and customized external designs can be arranged according to order requirements.
Lacquer selection depends on the filling product, acidity, salt content, oil content, sterilization process and destination market requirements.
Please provide the lid diameter, opening type, tinplate thickness, temper, lacquer requirement, color, printing design, quantity, destination port and trade terms.
Sample availability can be confirmed according to the requested diameter, tooling, coating and opening design. Production line testing is recommended before large-volume orders.
